Sulzer Projectile Parts-> Weft End Gripper |
|||
|---|---|---|---|

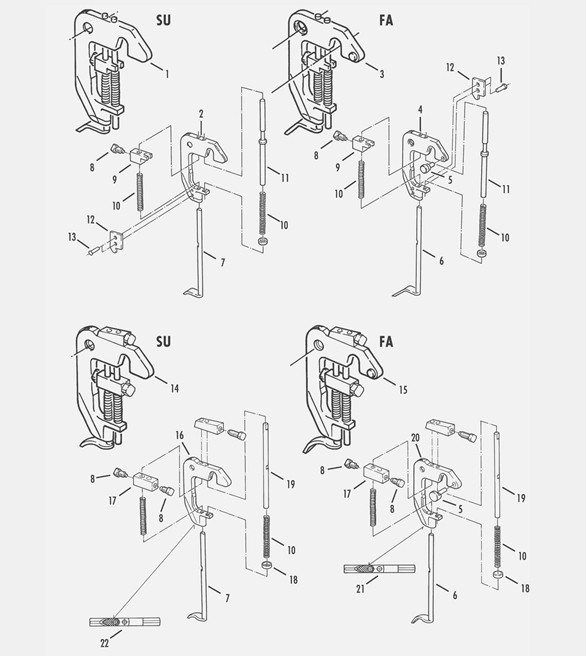

Weft End Gripper SU/FA
|
|||
Pos. |
FOBTEX No. |
Parts Code |
Description |
| 1 | 1123 |
911859344 | Weft End Gripper SU LLS hard spring Knurled |
| 1 | 1124 |
911859375 | Weft End Gripper with Hard Metal Insertion 4mm B,W,LL,SU 911859373 |
| 1 | 1125 |
911859384 | Weft End Gripper with Hard Metal Insertion 4mm T,P,LL,SU |
| 1 | 1126 |
911859391 | Weft End Gripper L/R Knurled l Insertion 4mm B,W,T,P,LL,SU |
| 1 | 1127 |
911859379 | Weft End Gripper,Spring Heard with Hard Metal Insertion 4mm B,TLL,SU |
| 2 | 1128 |
911132323 | Weft End Gripper Body with Hard Metal Insertion 4MM SU |
| 2 | 1129 |
911359295 | Weft End Gripper Body with Hard Metal Insertion L/R Knurled 4MM SU |
| 3 | 1130 |
911859374 | Weft End Gripper with Hard Metal Inserton 4MM S,LL,FA |
| 3 | 1131 |
911859376 | Weft End Gripper with Hard Metal Inserton 4MM B,W,LL,FA |
| 3 | 1132 |
911859386 | Weft End Gripper with Hard Metal Inserton 4MM FA,LL,LLS,T,P |
| 3 | 1133 |
911859395 | Weft End Gripper L/R KNURLED 4MM S,LL,FA |
| 3 | 1134 |
911859394 | Weft End Gripper L/R KNURLED 4MM FA,B,W,T,P,LL |
| 4 | 1135 |
911859381 | Weft End Gripper Body 4MM FA |
| 4 | 1136 |
911859393 | Weft End Gripper Body L/R Knurled 4MM FA,LL,HM |
| 5 | 1137 |
911359912 | Rivet STUD 2.5x8 |
| 5 | 1138 |
270006512 | Rivet STUD 2.5x10 HP |
| 6 | 1139NQ11-7 |
911132290 | Foot D=2.5x56 FA,RFKL=4MM911359602 |
| 6 | 1140 |
270002278 | Foot D=3x96 SU/FA,RFKL=6MM |
| 7 | 1141 |
911359601 | Foot D=2.5x56 SU,RFKL=4MM 911132289 |
| 8 | 1142 |
911232168 | Special Screw M3x5.6 Selvedge Saver,HDR |
| 9 | 1143 |
911132167 | Guide Piece RFKL=4MM |
| 10 | 1144 |
911359634 | Spring Weak 0.25/3.25x41 |
| 10 | 1145 |
911159292 | Spring Hard 0.38/3.4x34 |
| 1 | 1146 |
911859103 | Weft End Gripper H+P SU Spring Hard 0.5 |
| 1 | 1147 |
911859104 | Weft End Gripper H+P FA Spring Hard 0.5 |
| 10 | 1148 |
911859105 | Weak Spring 0.3 SU |
| 10 | 1149 |
911859106 | Weak Spring 0.3 FA |
| 10 | 1150 |
911859106 | Weak Spring 0.3 FA |
| 11 | 1151 |
911236152 | Spring ROD 2.5x50 LL,RFKL=4MM |
| 11 | 1152 |
911236164 | Spring ROD D=2.5x51 TLL |
| 12 | 1153 |
911359922 | Supporting Plate P,RFKL |
| 13 | 1154 |
921873346 | Lens Head Rivet 2x6 |
| 14 | 1155 |
917770118 | Weft End Gripper with Hard Metal Insertion 4MM SU,B,W,S,Selvdge Saver |
| 14 | 1156 |
911859534 | Weft End Gripper L/R Knurled 4MM SU,Selvedge Saver,HM |
| 14 | 1157 |
270002363 | Weft End Gripper L/R Knurled 6MM SU,P,T |
| 15 | 1158 |
917770119 | Weft End Gripper With Hard Metal Insertion 4MM FA,B,W,S,Selvedge Saver |
| 15 | 1159 |
911859535 | Weft End Gripper L/R Knurled 4MM FA,Selvedge Saver,HM |
| 15 | 1160 |
270006523 | Weft End Gripper 6MM FA,HP |
| 16 | 1161 |
911459086 | Weft End Gripper Body Hard Metal Insertion 4MM SU,B,W,S,Selvedge Saver |
| 16 | 1162 |
270000905 | Weft End Gripper Body with Hard Metal Insertion L/R Knurled 6MM SU |
| 17 | 1163 |
719803000 | Guide Piece |
| 17 | 1164 |
911459195 | Guide Piece,RFKL=6MM |
| 18 | 1165 |
911159434 | Spring CAP 2.6/3.8x1 |
| 18 | 1166 |
911459203 | Spring CAP 3.1/4.4x1 P=6MM |
| 19 | 1167 |
719802000 | Spring Rod D=2.5x50 LL |
| 19 | 1168 |
911459197 | Spring Rod 3x49 P,LL,RFKL=6MM |
| 20 | 1169 |
911459087 | Weft End Gripper Body with Hard Metal Insertion 4MM FA,B,W,S,Selvedge Saver |
| 20 | 1170 |
917770122 | Weft End Gripper Body with Hard Metal Insertion 4MM FA,B,W,S,Selvege Saver |
| 20 | 1171 |
911859540 | Weft End Gripper Body with Rivet Stud,with Hard Metal Insertion 6MM,FA,P |
| 21 | 1172 |
911459212 | Weft End Gripper Body L/R Knurled 4MM,FA,B,W,T,S,Selvedge Saver |
| 22 | 1173 |
911459211 | Weft End Gripper Body L/R Knurled 4MM,SU,B,W,T,S,Selvege Saver |
1174 |
270002364 | Weft End Gripper FA 6mm smooth LL | |
1175 |
270002362 | Weft End Gripper FA 6mm knurled LL | |
1176 |
270002363 | Weft End Gripper SU 6mm smooth LL | |
1177 |
270002359 | Weft End Gripper SU 6mm knurled LL | |
1178 |
270002368 | Weft End Gripper FA 6mm smooth LL | |
1179 |
270002366 | Weft End Gripper FA 6mm knurled LL | |
1180 |
270002367 | Weft End Gripper SU 6mm smooth LL | |
1181 |
270002365 | Weft End Gripper SU 6mm knurled LL | |
1182 |
911000366 | Weft End Gripper Body FA 6mm knurled | |
1183 |
270000921 | Weft End Gripper Body SU 6mm | |
1184 |
742006001 | Guide piece selvedge saver 6 mm | |
1185 |
741269000 | Rivet stud 2/3,4/5x10 | |
1186 |
742007001 | Opener attachment | |
1187 |
719805000 | Special screw m3x10 | |
1188 |
742014000 | Spring Rod D 3X50 | |
1189 |
911459197 | Spring Rod D 3X49 | |
1190 |
911459245 | Spring 0,40/3,9x33,50 | |
1191 |
911459210 | Spring hard 0,40/3,9x34,7 | |
1192 |
911459244 | Spring 0,40/3,9x28 | |
1193 |
741397000 | Clamping piece | |
1194 |
270006509 | Special screw m5x0,50x3,5 | |
1195 |
270009373 | Spring Bolt 10x21,40 | |
1196 |
741317000 | Spring Bolt 10x23,50 | |
