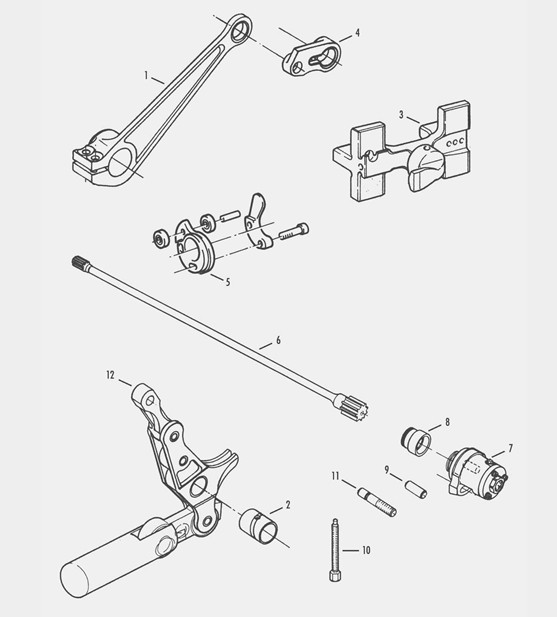

Sulzer Projectile Parts-> Picking Lever D35 D37 D38 Picking Link Picking Shoe |
|||
|---|---|---|---|
|
|||
Pos. |
FOBTEX No. |
Parts Code |
Description |

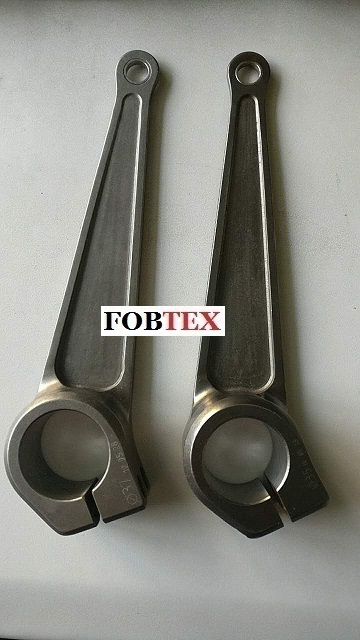

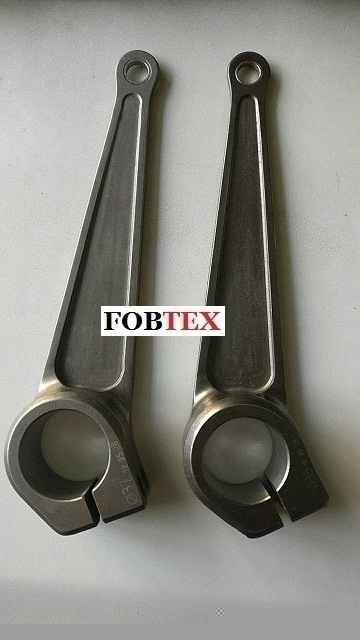

| 1 | 1066NQ216 |
PICKING LEVER D=35 911822071 | |
| 1 | 1067NQ216 |
PICKING LEVER D=35 HARD FIBER | |
| 1 | 1068 |
PICKING LEVER P7100 D=37 L=183.70MM SIDE PLAIN 911822157 |
|
| 1 | 1069 |
PICKING LEVER P7100 D=37 L=183.70MM HARD FIBER SIDE PLAIN 911157158 | |

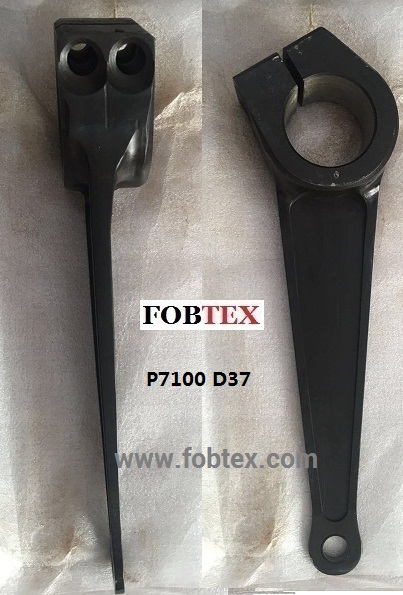

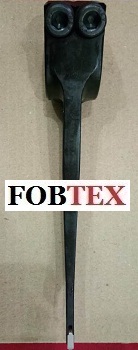

| 1 | 1070NQ252 |
911822170 | PICKING LEVER D=37 mm Steel,Central , Sunk, P7100 ,TITAN |
| 1 | 1070NQ252 |
PICKING LEVER D=37 mm Steel,Central , Sunk, P7100 | |
| 1 | 1070NQ252 |
911822175 | PICKING LEVER D=37 mm Steel,Central , Sunk, P7100 TITAN |
| 1 | 1078 |
911822108 |
PICKING LEVER D=38 Side ,Sunk, P7150 P7250 |
| 1 | 1079 |
911822108 | PICKING LEVER D=38 ,Central ,Sunk P7300 |
| 1 | 1079NQ252 |
Acceleration Lever HP Central , Sunk ,P7300 HP D38 |
|
| 1 | 1080 |
930822026 |
PICKING LEVER D=40 |
| 2 | 1081 |
911722008 |
BUSH 11/13.2X4 |
| 3 | 1082 |
911722007 |
BUSH 13.4/11X14 |
| 2 | 1083 |
911722015 |
BUSH 26/31X34 |
| 3 | 1084 |
930122709 |
PICKING SHOE PS |
| 3 | 1085 |
911122190 |
PICKING SHOE TW11 |
| 3 | 1086 |
911322278 |
PICKING SHOE PU with NOSE D1 |
| 3 | 1087 |
911322279 |
PICKING SHOE PU with NOSE D2 |
| 3 | 1088 |

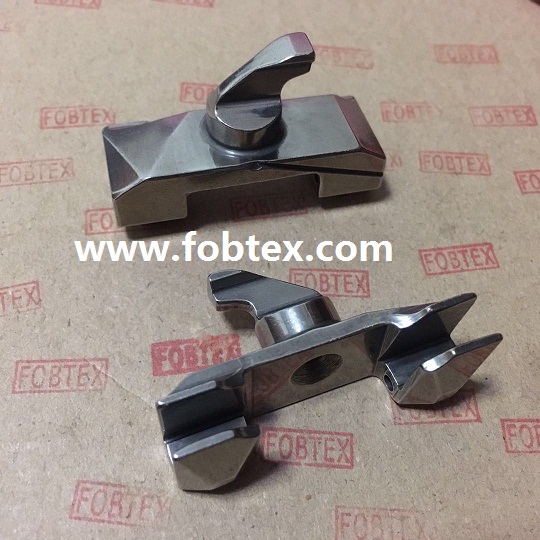

PICKING SHOE PU without NOSE 911322275 | |
| 3 | 1089 |
911322903 |
PICKING SHOE P7100 D1 WITHOUT NOSE WITHOUT GROOVE |
| 3 | 1090 |
911322541 |
PICKING SHOE P7100 D2 WITHOUT NOSE WITHOUT GROOVE |
| 3 | 1091 |
911322539 |
PICKING SHOE P7100 D1 WITH NOSE WITHOUT GROOVE |
| 3 | 1092 |
911322904 |
PICKING SHOE P7100 D2 WITH NOSE WITHOUT GROOVE |
| 3 | 1093 |
911322966 |
PICKING SHOE P7100 D1 WITHNOSE WITHOUT GROOVE |
| 3 | 1094 |
742769000 |
PICKING SHOE P7100 D1 D12 WITHOUT NOSE WITH GROOVE |
| 3 | 1095 |
911422007 |
PICKING SHOE P7100 D1 WITH NOSE WITH GROOVE |
| 3 | 1096 |
PICKING SHOE P7100 D2 WITH NOSE WITH GROOVE | |
| 3 | 1097 |
740951000 |
PICKING SHOE LIGHT 7150 D2 |

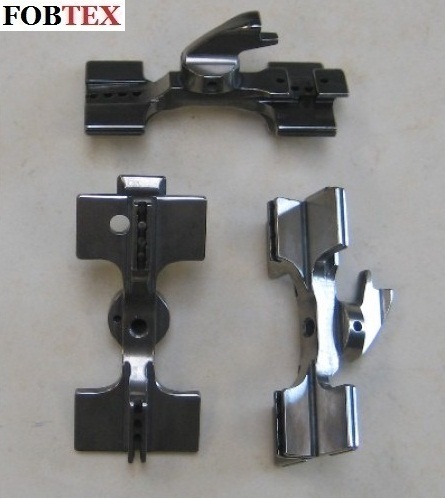

| 3 | 1098NQ103 |
PICKING SHOE ELASTIC S,B,W,P,D1, D12,P7100(with Nose and Groove) | |
| 4 | 1099 |
930122753 |
PICKING LINK PS |
| 4 | 1100 |
911122214 |
PICKING LINK TW11 |

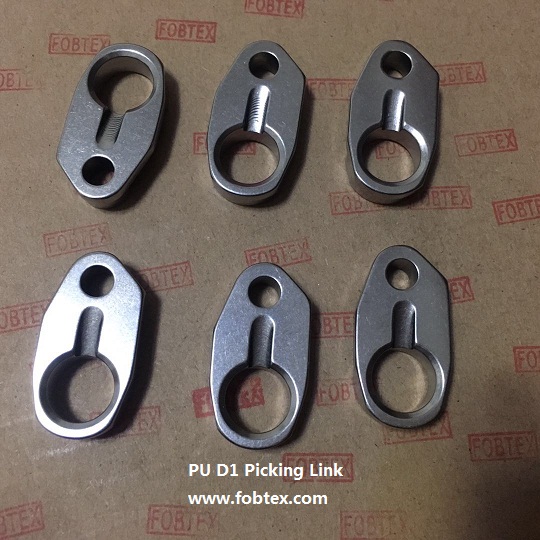

| 4 | 1101 |
PICKING LINK PU,D1 911322276 | |
| 4 | 1102 |
911322152 |
PICKING LINK PU,D2 |
| 4 | 1102-A |
911322397 | PICKING LINK P7100 D1 911322525 |
| 4 | 1103 |
911322896 |
PICKING LINK P7100 D2 |
1104 |
740951000 | PICKING LINK P7150 D2 | |
| 4 | 1104-A |
740850000 |
PICKING LINK P7150 D1 |
| 5 | 1105 |
911322227 |
PICKING CAM PU |
| 5 | 1106 |
911322928 |
PICKING CAM P7100 |
| 5 | 1107 |
741454000 |
PICKING CAM P7150 |
| 5 | 1108 |
911122160 |
PICKING CAM TW11 |
| 6 | 1109 |
911322934 |
TORSION ROD D=15.8,D1,D2 |
| 7 | 1110 |
911122232 |
Tension Flange |
| 7 | 1111 |
911822137 |
Tension Flange P7100 |
| 7 | 1112 |
911822057 |
Tension Flange PU |
| 8 | 1113 |
911722009 |
BUSH PU D40/42 L=37MM |
| 8 | 1114 |
911122295 |
BUSH P7100 D35/45 =L38MM |
| 9 | 1115 |
921799100 |
Cylindrical Pin 15X45 |
| 10 | 1116 |
911322302 |
SETTING SCREW M14X1.5 L=110MM |
| 10 | 1117 |
911322335 |
SETTING SCREW M14X1.5 L=118MM |
| 10 | 1118 |
911322527 |
SETTING SCREW M14X1.5 L=168MM |
| 11 | 1119 |
921011432 |
Stud M12x65 |

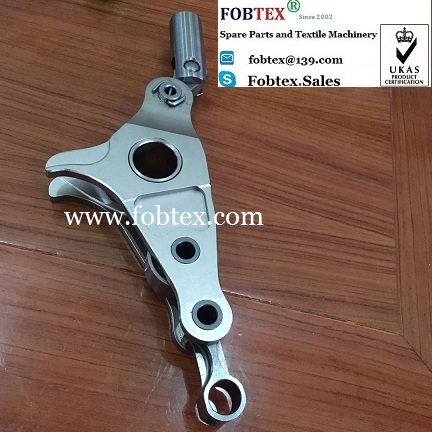

| 12 | 1120 |
911822053 |
Roller Lever Complete PU Φ15 |
| 12 | 1121LQ3450 |
Roller Lever Complete P7100 Φ16 911822132 | |
| 12 | 1122 |
911822129 |
Roller Lever Complete P7150 |
1122A |
Brake Plunger Piston 911822150 |
||
1122ANQ40 |
Oil Level Glass with O-Ring G3/4 |
||
