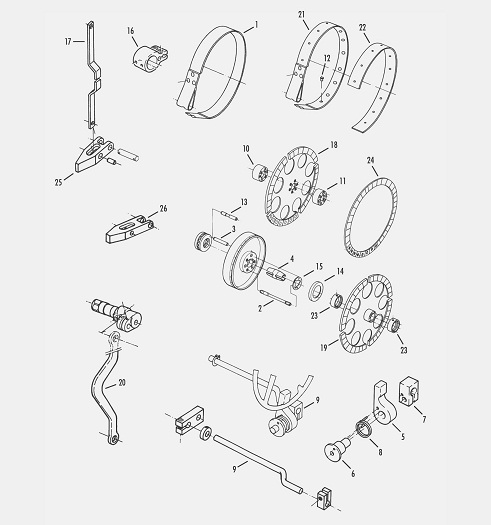

Sulzer Projectile Parts-> Drive and Brake |
|||
|---|---|---|---|
|
|||
Pos. |
FOBTEX No. |
Parts Code |
Description |
| 1 | 1344 |
911804055 |
Brake Band Free of Asbestos |
| 2 | 1345 |
911103335 |
Bolt L=172 |
| 3 | 1346 |
911103469 |
Pin |
| 4 | 1347 |
911303082 |
Taper Bush Key Groove L=11x8.5mm |
| 5 | 1348 |
911303398 |
Locking Lever |
| 6 | 1349 |
911303437 |
Support Bush 22/32/45x46 |
| 7 | 1350 |
911303489 |
Clamping Piece |
| 8 | 1351 |
911303491 |
Torsion Spring 3.2/41.2x55 |
| 9 | 1352 |
911803072 |
Hand Wheel Stop |
| 10 | 1353 |
911103397 |
Clamping Ring Inside |
| 11 | 1354 |
911103398 |
Clamping Ring Outside |
| 12 | 1355 |
911200274 |
Hollow Rivet 2.4/3.6/9.5x9 |
| 12 | 1356 |
911200925 |
Hollow Rivet 4.9x10.7 |
| 13 | 1357 |
911203112 |
Pin |
| 14 | 1358 |
911303281 |
Plate Disc 100/132.5/138.5x11 |
| 14 | 1359 |
911303282 |
Plate Disc 120/160.5/166.5x13 |
| 15 | 1360 |
911303327 |
Wear Ring |
| 16 | 1361 |
911704006 |
Clamp Piece 911801051 |
| 17 | 1362 |
911803014 |
Rod |
| 18 | 1363 |
911803101 |
Coupling Disc |
| 19 | 1364 |
911803102 |
Coupling Disc D=92 |
| 20 | 1365 |
911803117 |
Control Bar |
| 21 | 1366 |
911804028 |
Brake Band Free of Asbestos |
| 22 | 1367 |
911304368 |
Brake Lining Set of 5 Piece Free of Asbestos |
| 23 | 1368 |
912103278 |
Bush D92x102x30 |
| 24 | 1369 |
912103461 |
Coupling Segment Set of 8 Piece 911703019 |
| 25 | 1370 |
911303313 |
Coupling Lever |
